Ignition Switch Replacement

Post by Maineiac » Wed Jan 10, 2018 5:54 pm

I’ve found a source for a super easy, very cheap ignition switch replacement for the Ural. Ural of NE sells what I believe to be the exact same switch, just much more expensive.
Here’s Ural of NE’s switch:
http://www.uralne.com/ignition-switch-n ... ed-design/
Here’s the switch from Dime City for a fraction of the price:
https://www.dimecitycycles.com/vintage- ... 37600.html
Follow the wiring connections posted in the “how to” video on Ural of NE’s post under “Description” of the part.

I just wired this up, and it works a treat.

Seth
‘96 Ural Tourist w/an R100 motor.
1150GS w/a Ural sidecar.
Top
User avatar
lendrinkard
Hero of the Soviet Union - 2020
Hero of the Soviet Union - 2020
Posts: 1249
Joined: Wed Dec 05, 2012 10:05 pm
Location: Peninsula, Ohio

Re: Ignition Switch Replacement

Post by lendrinkard » Wed Jan 10, 2018 8:34 pm

Good find :)
I don't find the how to for the wiring diagram. I see the video.
Thanks
2012 Gear up - 130/40 jet, 3 shims, no mid-pipe, drilled slider, 2013 Branch pipes, all LED lights
2013 NOS Ural T - 130/42 jet, 2 shims, LED running lights, oil cooler
Top
User avatar
Tomcatfixer
Commissar
Commissar
Posts: 8358
Joined: Sat Oct 24, 2015 5:10 am
Location: Gordonsville, VA

Re: Ignition Switch Replacement

Post by Tomcatfixer » Wed Jan 10, 2018 9:30 pm

Great find! I ordered a switch for my '99 project bike and two cafe racer style mirrors: one to replace the broken one on the Mobile Chernobyl's hack and one for the '99.
I appreciate you sharing this.
- Chad

Gordonsville, Virginia, USA

Current rides:
2015 Ural cT "Mobile Chernobyl", 2001 Ural Patrol "Little Red Bear", 1999 Ural Tourist "The RPOC", Mid-Nineties Ural Tourist "The Heap", 1994 Honda VFR750F, 2007 BMW K1200GT

Previous rides:
2007 Honda VTR1000 FireStorm (Super Hawk in U.S.)
2001 Buell Blast! - - - - - - - 2005 Yamaha FJR1300
1993 Honda CBR600F2 - -1984 Yamaha FJ1100
Two different 1986 Yamaha FZX700S Fazers
Top
User avatar
Lokiboy
Hero of the Soviet Union - 2020
Hero of the Soviet Union - 2020
Posts: 4496
Joined: Fri Apr 29, 2011 9:58 pm

Re: Ignition Switch Replacement

Post by Lokiboy » Wed Jan 10, 2018 10:17 pm

Excellent! Thanks for posting
2011 Gear Up - "Erika"
Yorktown, VA

Mains: 127, Idle: 40, Needle: 1 shim
MKIII air filter
110,000 km and counting
Top
User avatar
Maineiac
Comrade Colonel
Comrade Colonel
Posts: 260
Joined: Mon May 19, 2014 9:11 pm

Re: Ignition Switch Replacement

Post by Maineiac » Wed Jan 10, 2018 10:19 pm

lendrinkard wrote:Good find :)
I don't find the how to for the wiring diagram. I see the video.
Thanks
Just scroll thru the video until the end, and it shows which wires go to what.

Seth


Sent from my iPhone using Tapatalk
‘96 Ural Tourist w/an R100 motor.
1150GS w/a Ural sidecar.
Top
User avatar
Emoore
Order of Lenin
Order of Lenin
Posts: 1205
Joined: Sat Dec 31, 2016 1:13 pm

Re: RE: Re: Ignition Switch Replacement

Post by Emoore » Thu Jan 11, 2018 6:48 am

Tomcatfixer wrote:Great find! I ordered a switch for my '99 project bike and two cafe racer style mirrors: one to replace the broken one on the Mobile Chernobyl's hack and one for the '99.
I appreciate you sharing this.
Got a link to those mirrors?

Thanks.

Sent from my Moto G Play using Tapatalk
Ernest
2012 Ural T Olive (Roulette)
2011 Patrol (OTTO)
Yamaha FZ07 ( My need for speed )

Wake Forest, NC

John Wayne - Life's Hard. It's Even Harder When You're Stupid.
Top
User avatar
Tomcatfixer
Commissar
Commissar
Posts: 8358
Joined: Sat Oct 24, 2015 5:10 am
Location: Gordonsville, VA

Re: Ignition Switch Replacement

Post by Tomcatfixer » Thu Jan 11, 2018 6:54 am

Got a link to those mirrors?
https://www.dimecitycycles.com/vintage- ... -0033.html
You do not have the required permissions to view the files attached to this post.
- Chad

Gordonsville, Virginia, USA

Current rides:
2015 Ural cT "Mobile Chernobyl", 2001 Ural Patrol "Little Red Bear", 1999 Ural Tourist "The RPOC", Mid-Nineties Ural Tourist "The Heap", 1994 Honda VFR750F, 2007 BMW K1200GT

Previous rides:
2007 Honda VTR1000 FireStorm (Super Hawk in U.S.)
2001 Buell Blast! - - - - - - - 2005 Yamaha FJR1300
1993 Honda CBR600F2 - -1984 Yamaha FJ1100
Two different 1986 Yamaha FZX700S Fazers
Top
User avatar
Emoore
Order of Lenin
Order of Lenin
Posts: 1205
Joined: Sat Dec 31, 2016 1:13 pm

Re: RE: Re: Ignition Switch Replacement

Post by Emoore » Thu Jan 11, 2018 11:59 am

Tomcatfixer wrote:
Got a link to those mirrors?
https://www.dimecitycycles.com/vintage- ... -0033.html
Thanks. I appreciate it.

Sent from my Moto G Play using Tapatalk
Ernest
2012 Ural T Olive (Roulette)
2011 Patrol (OTTO)
Yamaha FZ07 ( My need for speed )

Wake Forest, NC

John Wayne - Life's Hard. It's Even Harder When You're Stupid.
Top
autoloclys
Comrade
Comrade
Posts: 70
Joined: Mon May 05, 2014 2:55 pm

Re: Ignition Switch Replacement

Post by autoloclys » Wed Jun 05, 2019 3:55 pm

resurrecting an old thread. looks like the video is not online anymore, or at least i cant find it on youtube and its no longer linked in the ural NE sales page

does anyone have the wiring scheme for using this part? left a VM at uralNE but not certain they will get back to me.

thanks
Boston MA
2012 Retro M70
1979 Yamaha SR500
Top
macdafoe
New Member
New Member
Posts: 5
Joined: Sat Mar 21, 2020 9:31 pm

Re: Ignition Switch Replacement

Post by macdafoe » Sat Mar 21, 2020 11:31 pm

Was just looking for the same thing, and of course the video link is no longer posted on that page. Will hunt down the wiring schematic and post a copy here.
'96 Sportsman FD
Top
1chapelcredit
Comrade
Comrade
Posts: 34
Joined: Thu Aug 25, 2016 8:17 am
Location: Waco, TX

Re: Ignition Switch Replacement

Post by 1chapelcredit » Thu May 21, 2020 8:42 am

I'm also chiming into this incredibly helpful thread to ask... how do I get the darn thing out in the first place? I've tried my usual methods of "pulling harder" and "pulling harder while turning" already.
Ural cT 2016
Top
User avatar
S 854
Commissar
Commissar
Posts: 5302
Joined: Mon Dec 03, 2007 8:44 am
Location: Big Sky Country

Re: Ignition Switch Replacement

Post by S 854 » Thu May 21, 2020 8:48 am

Try pushing... it mounts from inside...
'07 Arctic: The Russian Raucous Ship

Things turn out best for the people who make the best of the way things turn out...
Top
MonkeysUncle
Hero of the Soviet Union - 2020
Hero of the Soviet Union - 2020
Posts: 273
Joined: Fri Oct 02, 2015 7:53 pm
Location: Albuquerque NM

Re: Ignition Switch Replacement

Post by MonkeysUncle » Tue Jul 28, 2020 5:38 pm

Wondering if anyone found the switch schematic.
Want to replace my switch and the dimecitycycles price caught my attention..
2008 KLR650
2013 GearUp
Top
fly2mex
New Member
New Member
Posts: 2
Joined: Sat Jan 02, 2021 3:44 pm

Re: Ignition Switch Replacement

Post by fly2mex » Thu Jan 07, 2021 12:55 pm

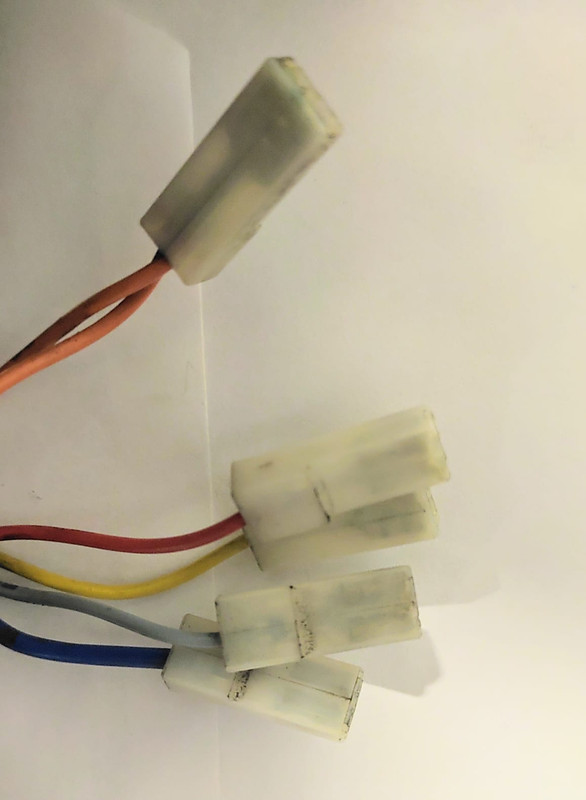

Maybe someone knows which cable goes with which... This is for a 2012 Ural T

We have the bike wiring coming as:


Orange
Red
Yellow
Gray
Blue

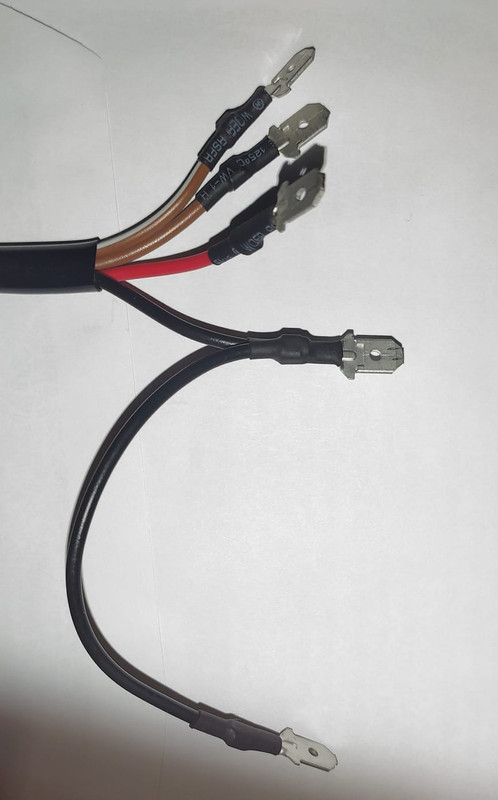

Then the new ignition switch has the following setup:


Brown/white
Brown
Red
Black (two connectors)

Here's the link that came with the printed instructions, but the image is black and white. Anyone has access to the dozuki system that could upload the picture here?

https://ural.dozuki.com/Guide/How+to+-+ ... ation/116?

Thanks in advance and happy 2021!
Last edited by fly2mex on Fri Jan 08, 2021 4:04 pm, edited 1 time in total.
